HTC-6600A
General Purpose Hydraulic Quick Coupling
Compatible with PARKER 6600A Series,FASTER ANV Series,AEROQUIP 5600 Series and HANSEN HA 15000 Series
- Items
- Specs
- Applications
Features: | |
1.Poppet valves available to prevent uncoupled leakage. | |
2.Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely. | |
3.Critical parts are hardened for durability. | |
4.Dependable ball-locking mechanism holds the mating halves together. | |
5.Socket and plug are precision machined from solid bar stock. | |
6.HTC-6600A series conforms to the standard of ISO7241-A. | |
7.Compatible with PARKER 6600A Series,FASTER ANV Series,AEROQUIP 5600 Series and HANSEN HA 15000 Series |
Body Size(in) | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 |
Rated Pressure(PSI) | 5000 | 4000 | 4000 | 3000 | 3000 | 3000 | 2000 | 2000 |

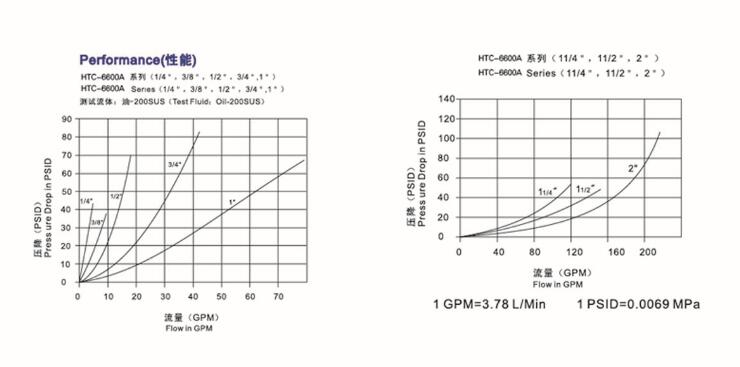

Rated Flow(GPM) | 3 | 6 | 12 | 28 | 50 | 88 | 220 | 240 |
Temperature Range(std seals) | -20℃ to +100℃ | |||||||
Standard seal material | Buna-N(Nitrile) |

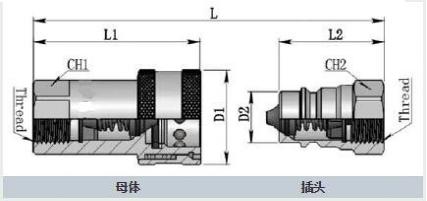

PART NO. | L1 | L2 | L3 | D1 | CH1 | CH2 | T |
HTC-6600A-02 | 50 | 35.5 | 15 | 26 | 19 | 19 | G1/4 NPT1/4 |
HTC-6600A-03 | 56 | 36.5 | 21.4 | 31.5 | 22 | 22 | G3/8 NPT3/8 |
HTC-6600A-04 | 66 | 43.5 | 27 | 38.5 | 27 | 27 | G1/2 NPT1/2 |
HTC-6600A-06 | 80 | 57 | 28 | 48 | 34 | 34 | G3/4 NPT3/4 |
HTC-6600A-08 | 94 | 59.5 | 36 | 56 | 41 | 41 | G1 NPT1 |
HTC-6600A-10 | 117 | 75 | 46 | 69.8 | 50 | 50 | G1-1/4 NPT1-1/4 |
HTC-6600A-12 | 133 | 83.5 | 52 | 84.5 | 60 | 60 | G1-1/2 NPT1-1/2 |
HTC-6600A-16 | 165 | 105 | 64 | 99 | 75 | 75 | G2 NPT2 |
HTC- 6600A Series couplings are very versatile and are used in a wide range of hydraulic applications including construction equipment, manufacturing machinery, and in-plant systems. They can be found anywhere the fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment.Rugged construction makes the HTC- 6600A Series couplings a good choice for mobile applications including dump trucks, snow plows, refuse hauling, mining, asphalt paving, truck trailer connections and many more.In-plant machinery applications include hydraulic fluid, chemicals and gas lines for paper mills, steel production, and many varieties of plant maintenance and production equipment.
