HTC-HNV SS316
HTC-HNV ISO7241-B SS316 General Purpose Hydraulic Quick Couplings
Compatible with PARKER 60 Series, FASTER HNV Series, AEROQUIP FD45 Series and HANSEN HK Series
- Items
- Specs
- Applications
Feature: Poppet valves available to prevent uncoupled leakage. Poppet valves open automatically when coupled,within rated working pressure,to keep the flow expeditely. Dependable ball-locking mechanism holds the mating halves together. Socket and plug are precision machined from solid bar stock. HTC-HNV series conforms to the standard of ISO7241-B Compatible with PARKER 60 Series,FASTER HNV Series,AEROQUIP FD45 Series and HANSEN HK Series.

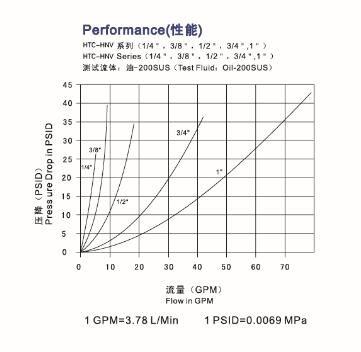

| Specifications | ||||||
| Body Size(in) | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 |
| Rated Pressure(PSI) 2000 | 2000 | 2000 | 1500 | 1500 | 1000 | |
| Rated Flow(GPM) | 1 | 3 | 6 | 12 | 28 | 50 |
| Temperature Range(std seals) | -20℃to+180℃ | |||||
| Standard seal material is VITON | ||||||
| ISO | PART NO. | LS | ΦD | HEX1 | A | T |
| 5 | HTC-HNV-01SF | 50 | 24 | 17 | 10 | G1/8 NPT1/8 |
| 6.3 | HTC-HNV-02SF | 58 | 28.5 | 19 | 13 | G1/4 NPT1/4 |
| 10 | HTC-HNV-03SF | 65 | 35 | 24 | 13 | G3/8 NPT3/8 |
| 12.5 | HTC-HNV-04SF | 73 | 42 | 30 | 17 | G1/2 NPT1/2 |
| 20 | HTC-HNV-06SF | 92 | 54 | 36 | 22 | G3/4 NPT3/4 |
| 25 | HTC-HNV-08SF | 103 | 65 | 41 | 23 | G1 NPT1 |
| ISO | PART NO. | LP | d | C | HEX1 | A | T |
| 5 | HTC-HNV-01PF | 31 | 10.8 | 19 | 14 | 10 | G1/8 NPT1/8 |
| 6.3 | HTC-HNV-02PF | 36 | 14.2 | 22.8 | 19 | 13 | G1/4 NPT1/4 |
| 10 | HTC-HNV-03PF | 40 | 19 | 25 | 24 | 13 | G3/8 NPT3/8 |
| 12.5 | HTC-HNV-04PF | 45.5 | 23.5 | 28 | 27 | 17 | G1/2 NPT1/2 |
| 20 | HTC-HNV-06PF | 56 | 31.5 | 36 | 36 | 22 | G3/4 NPT3/4 |
| 25 | HTC-HNV-08PF | 63 | 37.8 | 35.5 | 45 | 23 | G1 NPT1 |
HTC-HNV are used in construction equipment,hydraulic applications.These Double Shut-Off couplings can be found anywhere that fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment,and a loss of fluid is undesirable.
HTC-HNV are used in construction equipment,Forestry equipment,agricultural machinery,oiltools,Oil equipment, steel mill machinery, and other demanding hydraulic applications.
