Feature:

New valve design. it can resistance damage from high flow and the pressure of impulse that providing advanced performance.Sleeve locking mechanism is engaged by rotating sleeve after connection. It prevents accidental disconnection when, The coupling is dragged along the ground.

Sleeve mechanism is designed to prevent dirt from entering the internal the internal mechanism and thus causing faulty operation when connecting or disconnecting. The sleeve covers the retaining ring and also incorporates a dust seal in the spring area. Steel construction, zinc plated with yellow chromate finish.  hardened nipples and sleeves and solid barstock construction for maximum resistance to damage from hydraulic and mechanical shock.

Sleeve mechanism is designed to prevent dirt from entering the internal the internal mechanism and thus causing faulty operation when connecting or disconnecting. The sleeve covers the retaining ring and also incorporates a dust seal in the spring area. Steel construction, zinc plated with yellow chromate finish.  hardened nipples and sleeves and solid barstock construction for maximum resistance to damage from hydraulic and mechanical shock.

HTC-FFA conforms to standard of ISO16028, Compatible with PARKER FE Series,FFSeries,STUCCHIA8008 Series, AEROQUIP FD89 Series and HANSENQA2900 Series.

Body Size(in)	1/4	3/8	1/2	3/4	1
Rated Pressure(PSI)	5000	3600	3600	3600	3000

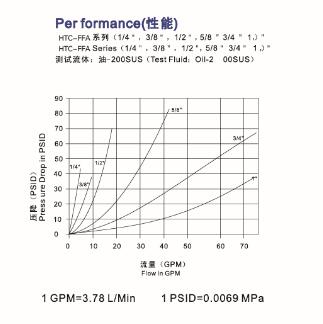

Rated Flow(GPM)	3	6	12	28	50
Temperature Range(std seals)	-20℃ to +100℃
Standard seal material	Buna-N(Nitrile)

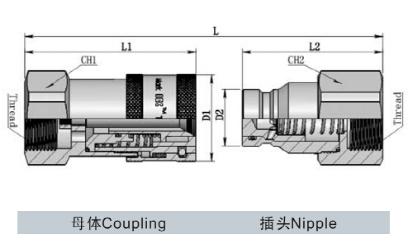

PART NO.	L1	L2	D1	CH1	CH2	T
HTC-FFA-02	49.2	49.2	28	S20	S20	G1/4 NPT1/4
HTC-FFA-03	68.4	55.6	32	S24	S24	G3/8 NPT3/8
HTC-FFA-04	75.2	71.5	38	S32	S32	G1/2 NPT1/2
HTC-FFA-06	80.2	75	42	S36	S36	G3/4 NPT3/4
HTC-FFA-08	99.9	93.8	48	S41	S41	G1 NPT1

HTC-FFA Series flat face hydraulic quick couplings are widely used in the public utility market where hydraulic oil spillage can constitute a serious safety hazard, particularly in overhead bucket hoists that are used for maintenance of high-voltage power transmission lines.These couplings are also used for quick change of hydraulic Tools in construction, railway maintenance and mining industries. The ease of cleaning makes them ideal for use in these types of hostile environments.
